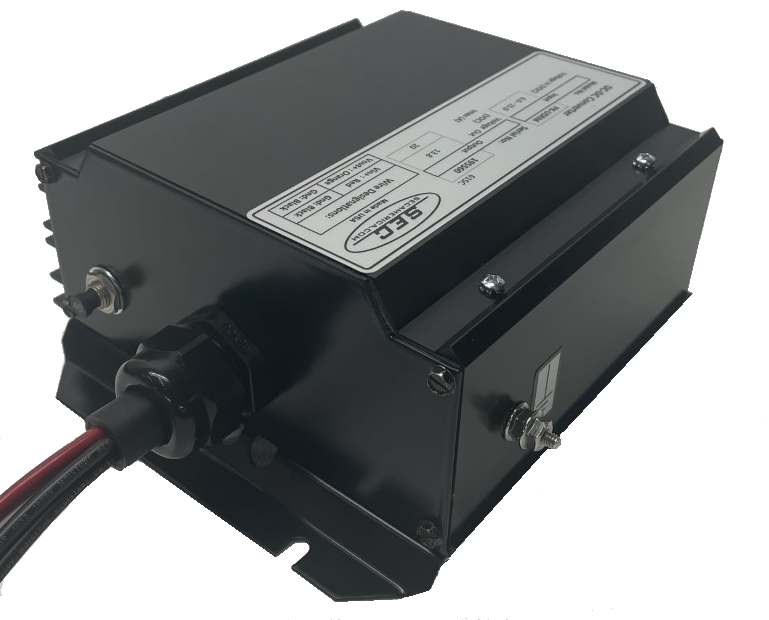

Model 615C

Model 615C

5-15V to 13.8V High Power DC-DC Converter

INPUT VDC

5-15

OUTPUT VDC (NOMINAL)

13.8

OUTPUT ADC

20

The Model 615C is designed for 12V vehicle electrical systems. Model 615C provides a solution to allow uninterruptible power to communications equipment while starting a vehicle’s engine. Model 615C supplies up to 13A at 13.8V at an input of 6V under cold cranking conditions as defined by ISO 16750-2. It supplies 20A at 13.8 VDC for input voltages greater than 10V.

General Application

  • May be installed in any part of a vehicle
  • For vehicles with negatively grounded systems only

features

  • Operates During Cold Engine Cranking
  • Protected Against Load Dump
  • Meets ISO 16750-2
  • Low Input Voltage Cutout
  • Convection Cooled
  • Soft-start Technology
  • 20A Maximum Output
  • Wide Operating Temperature Range
  • Shock and vibration resistant
  • Internally encapsulated
  • Electronically protected against output overloads

demanding applications

  • Utility Vehicles
  • Military Vehicles
  • Police Cruisers
  • Trucks
  • Buses
  • Loaders
  • Ambulances
Model 615C DC-DC Boost Converter
