MODIFIED SINE WAVE INVERTER

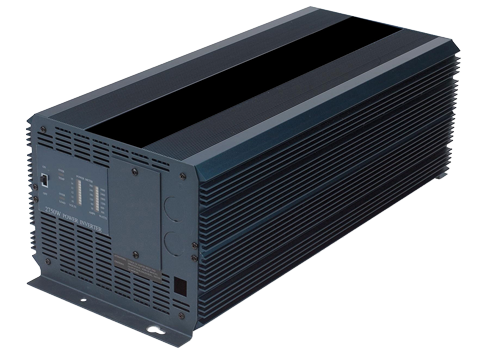

Model 2724 MS

24 VDC to 120 VAC
Modified Sine Wave Inverter

2700 Watt Power Output

Model 2724 MS is a high efficiency modified sine-wave inverter, which converts 24 Volts DC (Nominal) to 2700 watts of AC power at 120 Volts, 60 Hz. The unit comes with a set of battery cable lugs. Output AC power is available by means of hardwire connection. Features include protection against overload, over-temperature, low input and high input voltage. The front panel LED display indicates battery voltage and output power levels. Modified sine wave power is suitable for operating lamps, motors, and most resistive loads.

General Application

  • For mounting in weather protected compartments only

Specifications

  • Input Volts: 22-30 VDC
  • Output Watts: 2700
  • Output Volts: 120 VAC; 60 +, – 0.5 Hz.
  • Input Amps: 135 max.
  • Efficiency: 90% minimum
  • Output regulation: 3%, No Load to Full Load
  • Output Waveform: Modified Sine Wave
  • Dimensions (L x W x H): 19.5” x 8.5” x 6.3”
  • Weight: 24 lbs

features

  • High efficiency
  • High output current surge capability
  • Low battery alarm / shut down
  • Low idle power draw: < 0.05 Amps
  • Compact and light weight
  • Two output receptacles
  • Cool Operation
  • Easy Installation
  • Electronically protected against output overloads

Applications

  • Solar Power Systems
  • Mobile Offices (TV and Radio)
  • Industrial Controls (OEM)
  • Electric Utilities and Substations
  • Emergency Backup Power
  • Security Systems
  • Computer, Printers, Monitors, Fax Machines
  • Service Vehicles
  • Boats & Recreation Vehicles
  • Telecommunication
  • Microwave Ovens
  • Video Equipment
  • Communications Equipment
